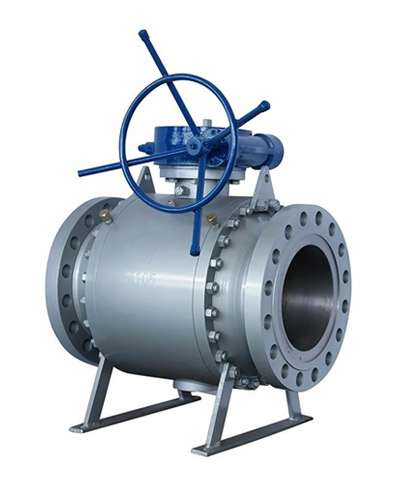

固定球阀
主要零部件材料
|
零件名称
Part name |
材料
Material |
|
阀体/盖
Body/Bonnet |
A105、304、316、304L、316L
|
|
球体 Ball
|
A105+HCr(Nip),2Cr13,304,316,304L,316L |
|
阀杆 Stem
|
2Cr13,304,316,304L,316L
|
|
阀座 Seat
|
PTFE、PPL、尼龙101
|
ANSI Class150 PN1.6 压力等级 法兰按ANSI B16.5 JB79 HG20596 (mm)
|
公称通径
|
NPS
|
2"
|
3"
|
4"
|
6"
|
8"
|
10"
|
12"
|
14"
|
16"
|
18"
|
20"
|
24"
|
28"
|
32"
|
36"
|
40"
|
|
DN
|
50
|
80
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
600
|
700
|
800
|
900
|
1000
|
|
|
球孔直径
|
51
|
76
|
102
|
152
|
203
|
254
|
305
|
337
|
387
|
438
|
489
|
591
|
686
|
781
|
876
|
978
|
|
|

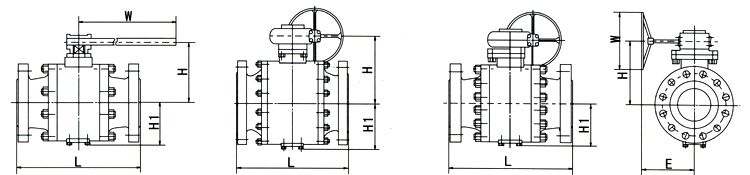

L
|
RF
|
178
|
203
|
229
|
394
|
457
|
533
|
610
|
686
|
762
|
864
|
914
|
1067
|
1245
|
1372
|
1524
|
1753
|
|
BW
|
216
|
283
|
305
|
457
|
521
|
559
|
635
|
762
|
838
|
914
|
991
|
1143
|
1346
|
1524
|
1727
|
1956
|
|
|
H1
|
100
|
110
|
130
|
175
|
210
|
274
|
305
|
340
|
395
|
440
|
470
|
580
|
640
|
730
|
980
|
1010
|
|
|
H
|
165
|
90
|
200
|
270
|
300
|
380
|
420
|
450
|
530
|
560
|
605
|
680
|
760
|
870
|
980
|
1040
|
|
|
W
|
400
|
700
|
850
|
600
|
600
|
600
|
800
|
800
|
800
|
800
|
800
|
800
|
800
|
800
|
800
|
800
|
|
|
E
|
|
|
|
116
|
116
|
116
|
171
|
171
|
257
|
257
|
257
|
150
|
83
|
83
|
123
|
123
|
|
|
F
|
|
|
|
350
|
350
|
350
|
420
|
420
|
500
|
500
|
500
|
580
|
650
|
650
|
735
|
735
|
|
|
重量(kg)
|
24
|
50
|
75
|
195
|
280
|
440
|
570
|
800
|
1480
|
2350
|
2400
|
4050
|
6160
|
7200
|
8700
|
12500
|
|
|
公称通径
|
NPS
|
2"
|
3"
|
4"
|
6"
|
8"
|
10"
|
12"
|
14"
|
16"
|
18"
|
20"
|
24"
|
28"
|
32"
|
36"
|
40"
|
|
DN
|
50
|
80
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
600
|
700
|
800
|
900
|
1000
|
|
|
球孔直径
|
51
|
76
|
102
|
152
|
203
|
254
|
305
|
337
|
387
|
438
|
489
|
591
|
686
|
781
|
876
|
978
|
|
|
L
|
RF
|
216
|
283
|
305
|
403
|
502
|
568
|
648
|
762
|
838
|
914
|
991
|
1143
|
1346
|
1524
|
1727
|
1956
|
|
RW
|
216
|
283
|
305
|
457
|
521
|
559
|
635
|
762
|
838
|
914
|
991
|
1143
|
1346
|
1524
|
1727
|
1956
|
|
|
H1
|
100
|
110
|
130
|
175
|
210
|
274
|
305
|
340
|
395
|
440
|
470
|
580
|
640
|
730
|
980
|
1010
|
|
|
H
|
165
|
190
|
200
|
270
|
300
|
380
|
420
|
450
|
530
|
560
|
605
|
680
|
760
|
870
|
980
|
1040
|
|
|
W
|
400
|
700
|
850
|
600
|
600
|
600
|
800
|
800
|
800
|
800
|
800
|
800
|
800
|
800
|
800
|
800
|
|
|
E
|
|
|
|
116
|
116
|
116
|
171
|
171
|
257
|
257
|
257
|
150
|
83
|
83
|
123
|
123
|
|
|
F
|
|
|
|
350
|
350
|
350
|
420
|
420
|
500
|
500
|
500
|
580
|
650
|
650
|
735
|
735
|
|
|
重量(kg)
|
30
|
58
|
95
|
210
|
318
|
440
|
575
|
800
|
1840
|
2700
|
2890
|
4640
|
6700
|
7810
|
9480
|
13800
|
|
|
公称通径
|
NPS
|
2"
|
3"
|
4"
|
6"
|
8"
|
10"
|
12"
|
14"
|
16"
|
18"
|
20"
|
24"
|
28"
|
32"
|
36"
|
40"
|
|
DN
|
50
|
80
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
600
|
700
|
800
|
900
|
1000
|
|
|
球孔直径
|
51
|
76
|
102
|
152
|
203
|
254
|
305
|
337
|
387
|
438
|
489
|
591
|
686
|
781
|
876
|
978
|
|
|
L
|
RF
|
292
|
356
|
406
|
495
|
597
|
673
|
762
|
826
|
902
|
978
|
1054
|
1232
|
1397
|
1651
|
1880
|
1956
|
|
RW
|
292
|
356
|
406
|
495
|
597
|
673
|
762
|
826
|
902
|
978
|
1054
|
1232
|
1397
|
1651
|
1880
|
1956
|
|
|
H1
|
110
|
120
|
140
|
185
|
220
|
270
|
310
|
345
|
410
|
440
|
480
|
590
|
655
|
730
|
830
|
930
|
|
|
H
|
180
|
200
|
210
|
290
|
320
|
380
|
430
|
450
|
550
|
580
|
630
|
700
|
790
|
890
|
1000
|
1070
|
|
|
W
|
400
|
700
|
850
|
600
|
600
|
600
|
800
|
800
|
800
|
800
|
800
|
800
|
800
|
800
|
800
|
800
|
|
|
E
|
|
|
|
116
|
116
|
116
|
171
|
171
|
257
|
257
|
257
|
150
|
83
|
83
|
123
|
123
|
|
|
F
|
|
|
|
350
|
350
|
350
|
420
|
420
|
500
|
500
|
500
|
580
|
650
|
650
|
735
|
735
|
|
|
重量(kg)
|
30
|
58
|
95
|
210
|
318
|
440
|
575
|
800
|
1840
|
2700
|
2890
|
4640
|
6700
|
7810
|
9480
|
13800
|
|
